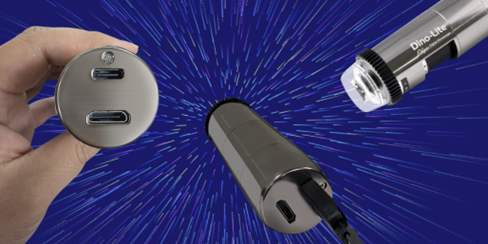

Das AM62118MZT ist ein digitales Mikroskop mit einem Vergrößerungsbereich von 10x ~ 220x und bietet sowohl 1080p HDMI- als auch 2-Megapixel USB-Ausgänge in einem einzigen Gerät. Der HDMI-Modus liefert flüssige, hochauflösende Echtzeitbilder auf einem Display, während der USB-Modus PC-Funktionen über Software ermöglicht.
Hinweis: HDMI- und USB-Modus können nicht gleichzeitig verwendet werden.
Das AM62518MZT ist ein digitales Mikroskop mit einem Vergrößerungsbereich von 10x ~ 220x und bietet sowohl 1080p HDMI- als auch 2-Megapixel-USB-Ausgänge in einem einzigen Gerät. Der HDMI-Modus liefert Echtzeit-, flüssige und hochauflösende Bilder auf einem Display, während der USB-Modus über Software erweiterte PC-Funktionen wie AMR, eFLC und EDR ermöglicht.
Hinweis: HDMI- und USB-Modus können nicht gleichzeitig verwendet werden.
Das AM62918MZT ist ein digitales Mikroskop mit einem Vergrößerungsbereich von 10x ~ 220x, das sowohl 1080p HDMI- als auch 2-Megapixel-USB-Ausgänge in einem einzigen Gerät bietet. Der HDMI-Modus liefert Echtzeit-, flüssige und hochauflösende Bilder auf einem Display, während der USB-Modus erweiterte PC-basierte Funktionen über Software ermöglicht, einschließlich AMR, eFLC, EDR, EDOF und DPQ.
Hinweis: HDMI- und USB-Modus können nicht gleichzeitig verwendet werden.
AM62118MZT
AM62518MZT
AM62918MZT
Optical Data Table
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF |
|
10x |
142.9 |
60.69 |
34.14 |
26.14 |
|
20x |
59.9 |
30.35 |
17.07 |
7.05 |
|
30x |
33.2 |
20.23 |
11.38 |
3.36 |
|
40x |
20.5 |
15.17 |
8.53 |
2.02 |
|
50x |
13.5 |
12.14 |
6.83 |
1.38 |
|
60x |
9.3 |
10.11 |
5.69 |
1.01 |
|
70x |
6.7 |
8.67 |
4.88 |
0.79 |
|
80x |
5.1 |
7.59 |
4.27 |
0.64 |
|
90x |
4.2 |
6.74 |
3.79 |
0.53 |
|
100x |
3.7 |
6.07 |
3.41 |
0.45 |
|
110x |
3.6 |
5.52 |
3.10 |
0.39 |
|
120x |
3.8 |
5.06 |
2.85 |
0.34 |
|
130x |
4.1 |
4.67 |
2.63 |
0.30 |
|
140x |
4.6 |
4.34 |
2.44 |
0.27 |
|
150x |
5.2 |
4.05 |
2.28 |
0.25 |
|
160x |
5.9 |
3.79 |
2.13 |
0.22 |
|
170x |
6.7 |
3.57 |
2.01 |
0.21 |
|
180x |
7.6 |
3.37 |
1.90 |
0.19 |
|
190x |
8.5 |
3.20 |
1.80 |
0.18 |
|
200x |
9.5 |
3.03 |
1.71 |
0.16 |
|
210x |
10.5 |
2.89 |
1.63 |
0.15 |
|
220x |
11.6 |
2.76 |
1.55 |
0.14 |
M = magnification rate / Vergrößerungsrate
WD = working distance / Arbeitsabstand
FOV = field of view / Sichtfeld
DOF = depth of field / Schärfentiefe
Unit / Einheit = mm
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF |
|
10x |
142.9 |
60.69 |
34.14 |
26.14 |
|
20x |
59.9 |
30.35 |
17.07 |
7.05 |
|
30x |
33.2 |
20.23 |
11.38 |
3.36 |
|
40x |
20.5 |
15.17 |
8.53 |
2.02 |
|
50x |
13.5 |
12.14 |
6.83 |
1.38 |
|
60x |
9.3 |
10.11 |
5.69 |
1.01 |
|
70x |
6.7 |
8.67 |
4.88 |
0.79 |
|
80x |
5.1 |
7.59 |
4.27 |
0.64 |
|
90x |
4.2 |
6.74 |
3.79 |
0.53 |
|
100x |
3.7 |
6.07 |
3.41 |
0.45 |
|
110x |
3.6 |
5.52 |
3.10 |
0.39 |
|
120x |
3.8 |
5.06 |
2.85 |
0.34 |
|
130x |
4.1 |
4.67 |
2.63 |
0.30 |
|
140x |
4.6 |
4.34 |
2.44 |
0.27 |
|
150x |
5.2 |
4.05 |
2.28 |
0.25 |
|
160x |
5.9 |
3.79 |
2.13 |
0.22 |
|
170x |
6.7 |
3.57 |
2.01 |
0.21 |
|
180x |
7.6 |
3.37 |
1.90 |
0.19 |
|
190x |
8.5 |
3.20 |
1.80 |
0.18 |
|
200x |
9.5 |
3.03 |
1.71 |
0.16 |
|
210x |
10.5 |
2.89 |
1.63 |
0.15 |
|
220x |
11.6 |
2.76 |
1.55 |
0.14 |
M = magnification rate / Vergrößerungsrate
WD = working distance / Arbeitsabstand
FOV = field of view / Sichtfeld
DOF = depth of field / Schärfentiefe
Unit / Einheit = mm
Information über Arbeitsabstand und Sichtfeld
| M | WD | FOV (x) | FOV (y) | DOF |
|
10x |
144.1 |
60.69 |
34.14 |
18.56 |
|
20x |
61.0 |
30.35 |
17.07 |
5.35 |
|
30x |
34.3 |
20.23 |
11.38 |
2.69 |
|
40x |
21.6 |
15.17 |
8.53 |
1.69 |
|
50x |
14.6 |
12.14 |
6.83 |
1.19 |
|
60x |
10.4 |
10.11 |
5.69 |
0.91 |
|
70x |
7.8 |
8.67 |
4.88 |
0.72 |
|
80x |
6.2 |
7.59 |
4.27 |
0.60 |
|
90x |
5.2 |
6.74 |
3.79 |
0.51 |
|
100x |
4.8 |
6.07 |
3.41 |
0.44 |
|
110x |
4.7 |
5.52 |
3.10 |
0.39 |
|
120x |
4.8 |
5.06 |
2.85 |
0.34 |
|
130x |
5.1 |
4.67 |
2.63 |
0.31 |
|
140x |
5.6 |
4.34 |
2.44 |
0.28 |
|
150x |
6.3 |
4.05 |
2.28 |
0.26 |
|
160x |
7.0 |
3.79 |
2.13 |
0.24 |
|
170x |
7.8 |
3.57 |
2.01 |
0.22 |
|
180x |
8.6 |
3.37 |
1.90 |
0.21 |
|
190x |
9.6 |
3.20 |
1.80 |
0.19 |
|
200x |
10.6 |
3.03 |
1.71 |
0.18 |
|
210x |
11.6 |
2.89 |
1.63 |
0.17 |
|
220x |
12.6 |
2.76 |
1.55 |
0.16 |
M = magnification rate / Vergrößerungsrate
WD = working distance / Arbeitsabstand
FOV = field of view / Sichtfeld
DOF = depth of field / Schärfentiefe
Unit / Einheit = mm
Spezifikation
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Polarizer | Yes |
| Optics | |
| Magnification | 10x ~ 220x |
| Macro zoom | Yes |
| Working distance | Standard |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 2.0 Megapixels (1920 x 1080) |
| Maximum frame rate | 30 fps at 2.0 MP, MJPEG |
| Compatibility | |
| Interface | Hybrid microscope with switchable HDMI or USB connectivity |
| Software | DinoCapture 2.0 (Windows), DinoCapture 3.0 (Windows), DinoXcope (Mac OS) |
| Housing | |
| Housing material | Metal housing |
| Dimensions | 130 mm (H) x 33 mm (D) |
| Weight | 120 g |
| Cable length | Type-C to Type-C, Cable (1.8 m), Type-C to Type-A Cable (1.8 m), Mini-HDMI to HDMI Cable (1.8 m) |
| Features | |
| Special feature | Enhanced Flexible LED Control (eFLC) |
| Microtouch sensor | Yes |
| Information | |
| Package contents | Microscope, Carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €1099,00 |
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Polarizer | Yes |
| Optics | |
| Magnification | 10x ~ 220x |
| Working distance | Standard |
| Lens type | 1/2.8 |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 2.0 Megapixels (1920 x 1080) |
| Maximum frame rate | 60 fps |
| Compatibility | |
| Interface | Hybrid microscope with switchable HDMI or USB connectivity |
| Software | DinoCapture 2.0 (Windows), DinoCapture 3.0 (Windows), DinoXcope (Mac OS) |
| Housing | |
| Housing material | Metal housing |
| Magnification lock | Yes |
| Dimensions | 130 mm (H) x 33 mm (D) |
| Weight | 120 g |
| Cable length | Type-C to Type-C, Cable (1.8 m), Type-C to Type-A Cable (1.8 m), Mini-HDMI to HDMI Cable (1.8 m) |
| Features | |
| Special feature | Enhanced Flexible LED Control (eFLC), Extended Dynamic Range (EDR), Automatic Magnification Readout (AMR) |
| Microtouch sensor | Yes |
| Information | |
| Package contents | Microscope, Carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €1169,00 |
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Polarizer | Yes |
| Optics | |
| Magnification | 10x ~ 220x |
| Working distance | Standard |
| Lens type | 1/2.8 |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 2.0 Megapixels (1920 x 1080) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | Hybrid microscope with switchable HDMI or USB connectivity |
| Software | DinoCapture 2.0 (Windows), DinoCapture 3.0 (Windows), DinoXcope (Mac OS) |
| Housing | |
| Housing material | Metal housing |
| Magnification lock | Yes |
| Dimensions | 130 mm (H) x 33 mm (D) |
| Weight | 120 g |
| Cable length | Type-C to Type-C, Cable (1.8 m), Type-C to Type-A Cable (1.8 m), Mini-HDMI to HDMI Cable (1.8 m) |
| Features | |
| Special feature | Enhanced Flexible LED Control (eFLC), Depth Acquisition (DPQ), Extended Depth of Field (EDOF), Extended Dynamic Range (EDR), Auto and Manual Refocus, Automatic Magnification Readout (AMR) |
| Microtouch sensor | Yes |
| Information | |
| Package contents | Microscope, Carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €1399,00 |
